NexaRAM
NexaRAM

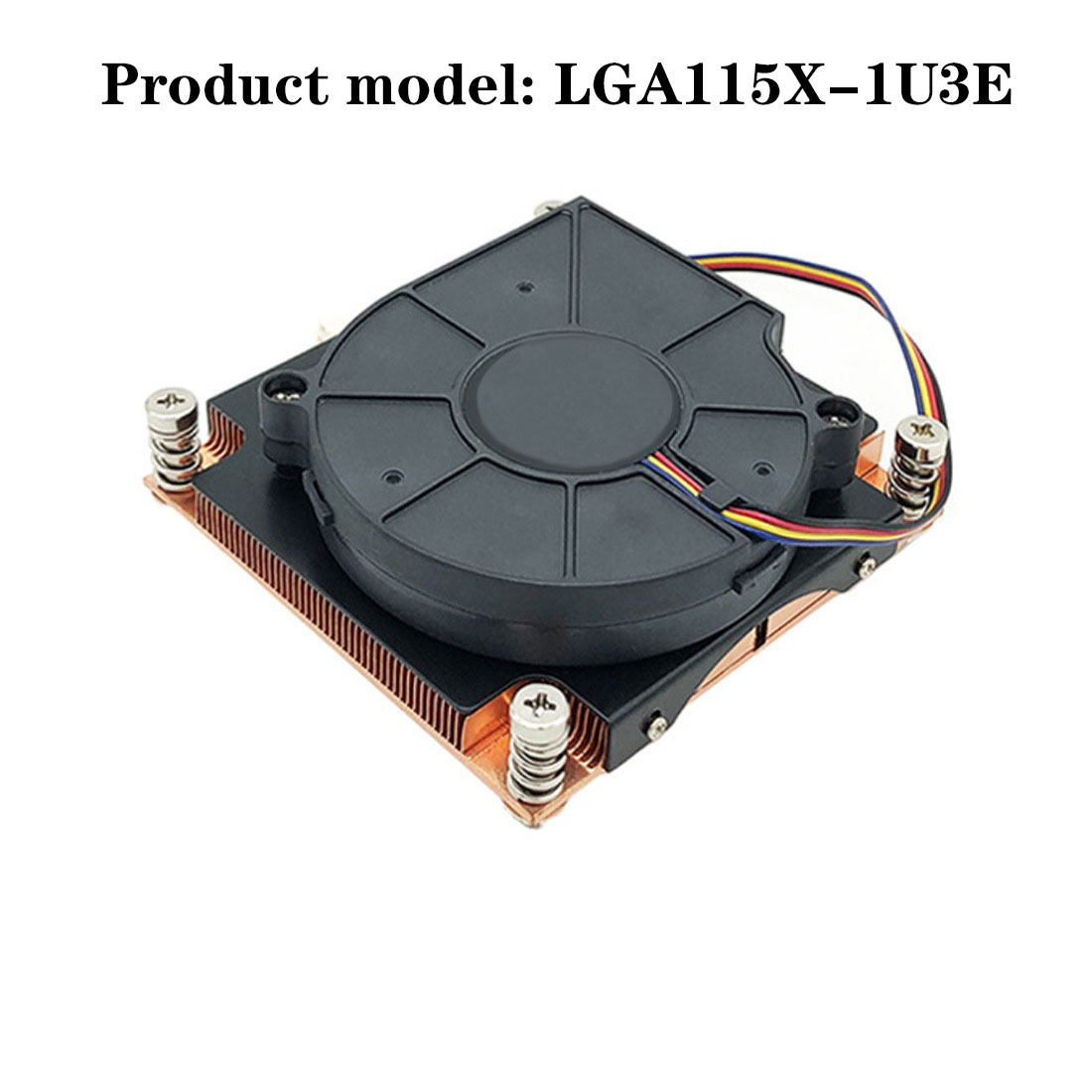

| Product model | LGA115X-1U3E |
| Product size | 83mm*83mm*28mm |
| Fan speed | PWM 2000-5000RPM |
| Noise value | 54.80dBA (MAX) |
| Air volume | 10.37CFM (MAX) |
| Fan plug | 4pin PWM |
| Bearing type | double ball |
| Material quality | copper base + copper fins |
| Power consumption | 110W |
| Voltage | 12V |
This cooler is compatible with Intel LGA115X sockets, which include LGA1150, LGA1151, LGA1155, and LGA1156.
Yes, with its ultra-low profile height of only 28mm (dimensions: 83mm*83mm*28mm), it is specifically designed to fit 1U standard server configurations.

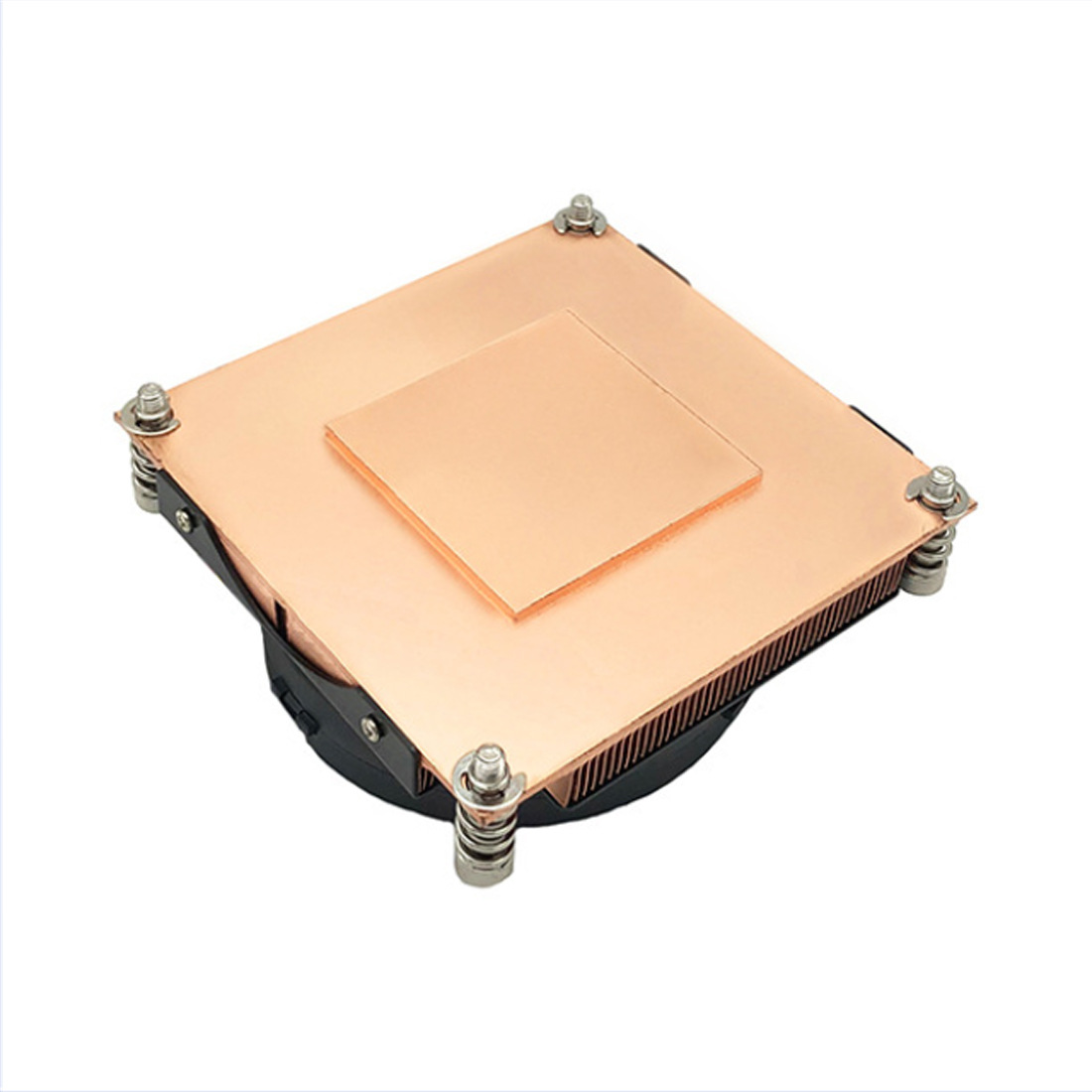

The cooler utilizes a premium solid copper base paired with dense copper fins to provide highly efficient heat conduction and dissipation.

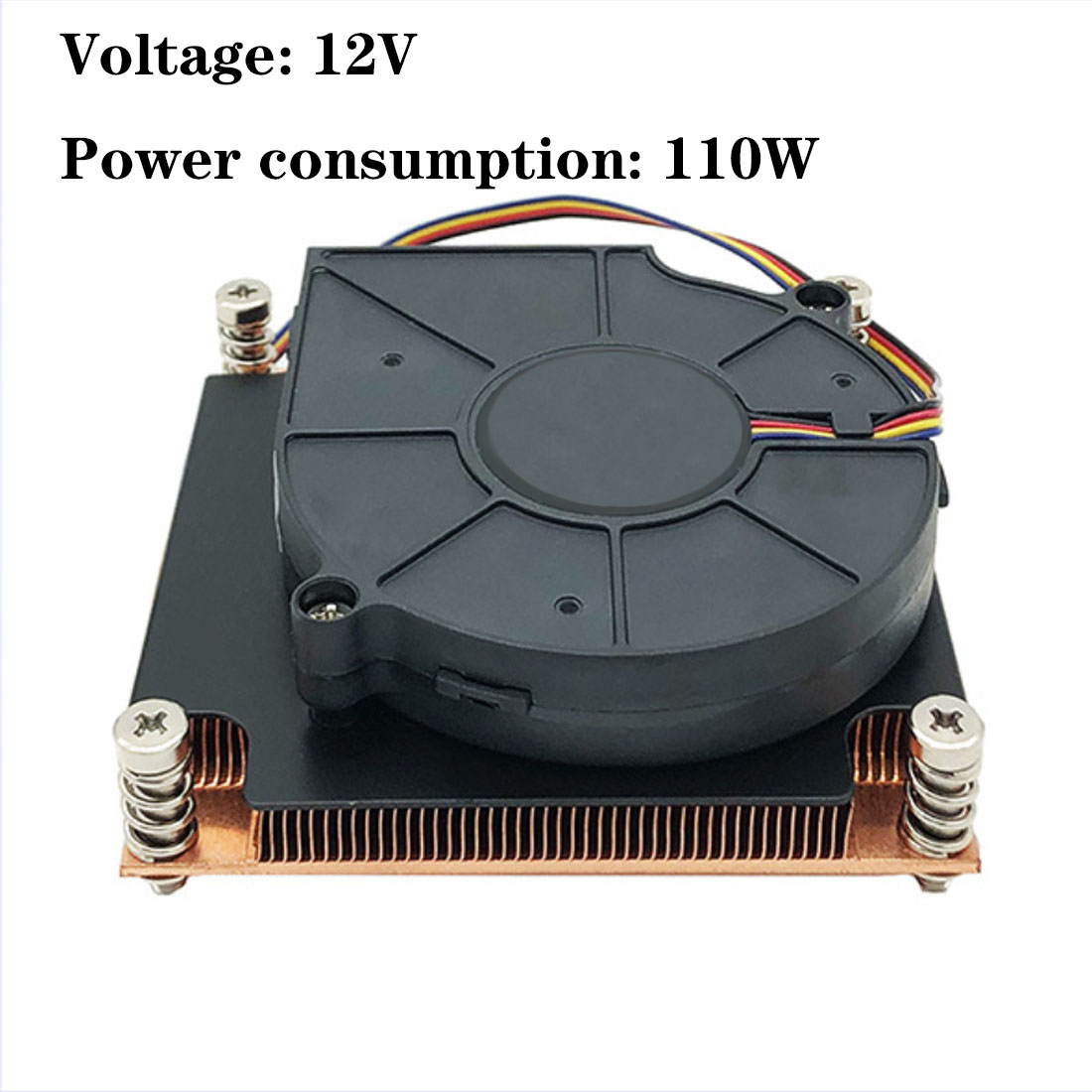

The cooler supports CPUs with a power consumption (TDP) up to 110W and operates on a standard 12V voltage input.

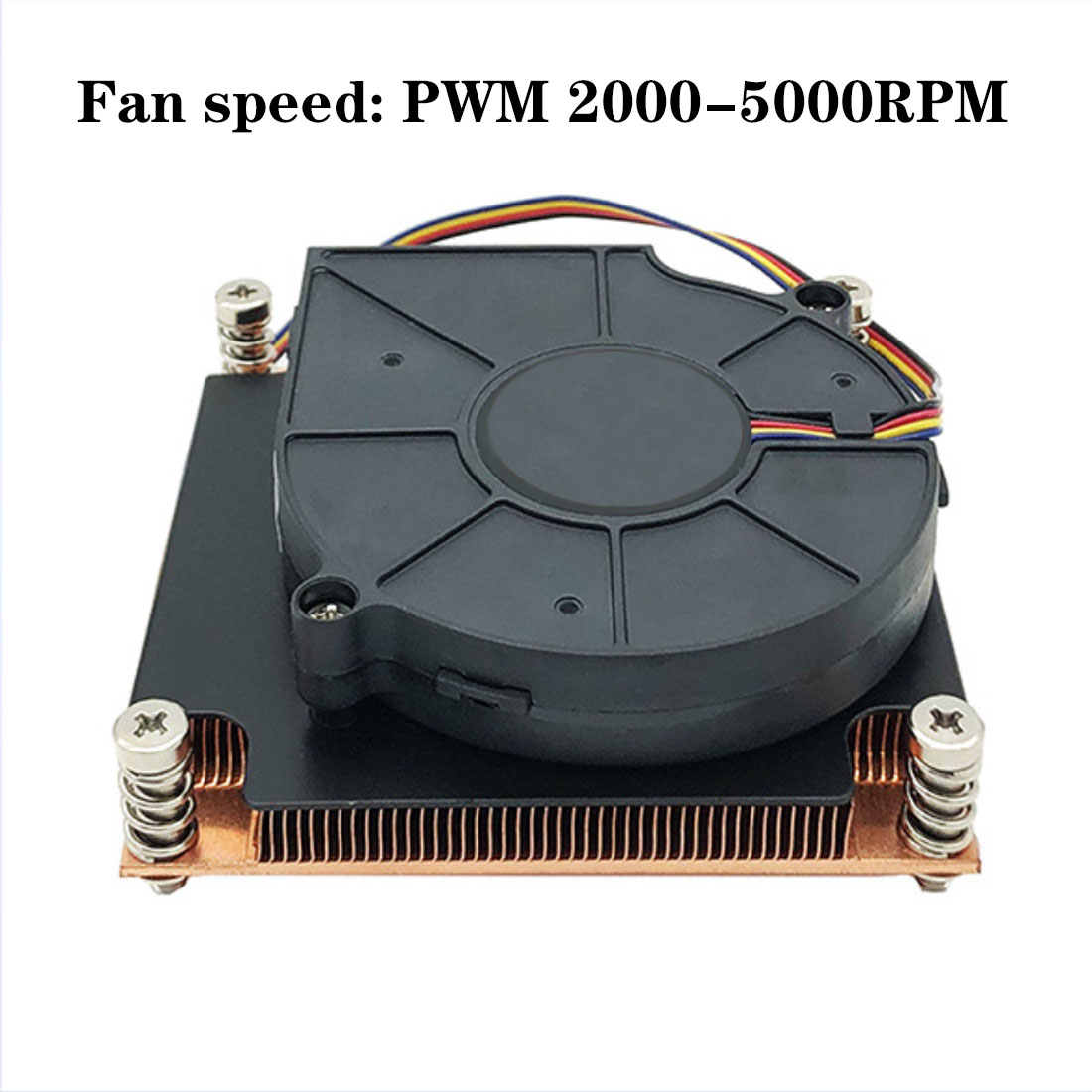

It uses a 4-pin PWM plug which allows the system motherboard to dynamically control the fan speed from 2000 to 5000 RPM based on temperature demands, operating on a double ball bearing design for extended longevity.
