We are a leading manufacturer specializing in high-density multilayer printed circuit boards and specialty boards. With certifications including UL, ISO9001:2015, ISO14001:2015, CQC, IATF16949:2016, and "National Military Standard," we provide top-quality products and services.
Our extensive product range includes multilayer boards, impedance boards, high-frequency boards, high TG thick copper foil boards, 5G high-speed boards, buried blind via boards, aluminum-based boards, hybrid dielectric boards, HDI, rigid-flex boards, specialty boards, and customized solutions.
Driven by technological innovation, our products are widely used in industries such as communication equipment, industrial control, automotive electronics, energy and power, medical devices, IoT, research institutions, aerospace, and defense. With over 19 years of experience, we have served over 1,000 technology innovation-oriented enterprises with rapid prototyping and mass production services. We are committed to delivering cutting-edge solutions and exceeding customer expectations in the dynamic electronics industry.
The product has eight parameter configurations. Please refer to the specific requirements below and consult customer service for a quote:
| Rigid PCB Manufacturing Capability | ||
|---|---|---|
| Category | Volume Production | Sample Processing |
| Layer count | 1-68L | 64 Layer |
| Max thickness | 10mm (394mil) | 14mm (551mil) |
| Min line width/space (Inner layer) | 2.2mil / 2.2mil | 2.0mil / 2.0mil |
| Min line width/space (Outer layer) | 2.5mil / 2.5mil | 2.2mil / 2.2mil |
| Alignment (Core board) | ±25um | ±20um |
| Alignment (Inner layer) | ±5mil | ±4mil |
| Max copper | 6oz | 30oz |
| Holes size (Mechanical drilling) | ≥0.15mm (6mil) | ≥0.1mm (4mil) |
| Holes size (Laser drilling) | 0.1mm (4mil) | 0.050mm (2mil) |
| Max size (Unit size) | 850mm x 570mm | 1000mm x 600mm |
| Max size (Panel size) | 1250mm x 570mm | 1320mm x 600mm |
| Aspect ratio (Unit size) | 20:1 | 28:1 |
| Aspect ratio (Panel size) | 25:1 | 35:1 |
| Lead-free/Halogen-free Materials | EM827, 370HR, S1000-2, IT180A, EM825, IT158, S1000 / S1155, R1566W, EM285, TU862HF | |
| High-speed PCB Materials | Megtron6, Megtron4, Megtron7, TU872SLK, FR408HR, N4000-13 Series, MW4000, MW2000, TU933 | |
| High-frequency PCB Materials | Ro3003, Ro3006, Ro4350B, Ro4360G2, Ro4835, CLTE, Genclad, RF35, FastRise27 | |
| Other Materials | Polyimide, Tk, LCP, BT, C-ply, Fradflex, Omega, ZBC2000 | |
| Surface Finish Options | HAL, HAL-LF, ENIG, IMMERSION TIN, OSP, IMMERSION SILVER, GOLD FINGER, Hard Gold/Soft Gold Plating | |
| Special Technology Capabilities | Blind & buried holes, Via in pad, Semi-plating holes, Counterbore, Step mounting holes, drill Mixed RF PCB, Busbar PCB | |
As PCBs are custom products, returns are not supported. For quality issues, please contact customer service for a refund or replacement, but we do not bear any losses or costs beyond the product value. Delays in delivery due to force majeure factors such as power outages or water supply interruptions will not be compensated.
If there are any issues or special instructions, please communicate directly with customer service for confirmation. Do not leave messages, as we will not be responsible for any missed messages. Before and after payment, please confirm the process, quantity, and layers with customer service. Problems that arise after production or shipment will not be eligible for refunds. Since this product requires a high level of expertise, if the purchasing personnel are not knowledgeable, please confirm with your engineer or customer service. We will not be responsible for any issues caused by the customer's lack of understanding.
Orders placed before 17:00 are considered as placed on the same day; orders placed after 17:00 are considered as placed the next day. "24-hour delivery" refers to one business day, not 24 hours. The delivery time provided by customer service and on the page does not include Sundays or holidays.
Green solder mask, white silkscreen, 1.6mm board thickness, HASL, 1oz copper thickness, vias with solder mask, line width/spacing 0.2mm, vias above 0.3mm. The Gerber format is used according to the provided files. (The quotation is based on standard processes; please inform customer service of any special process requirements for a new quotation.)
| Layer Count | Sample Shortest Lead Time | Sample Standard Lead Time | Mass Production Lead Time |
|---|---|---|---|
| 2 layer | 24 h | 3 days | 6-7 days |
| 4 layer | 36 h | 5 days | 8-10 days |
| 6 layer | 48 h | 5 days | 8-12 days |
| 8 layer | 72 h | 5 days | 9-12 days |
| 10 layer | 4 days | 7 days | 14 days |
| 12 layer | 4 days | 7 days | 16 days |
| 14 layer | 5 days | 8 days | 16 days |
| 16 layer | 5 days | 9 days | 18 days |
| 18 layer | 7 days | 10 days | 18 days |
| 20 layer and above | To be negotiated | To be negotiated | To be negotiated |

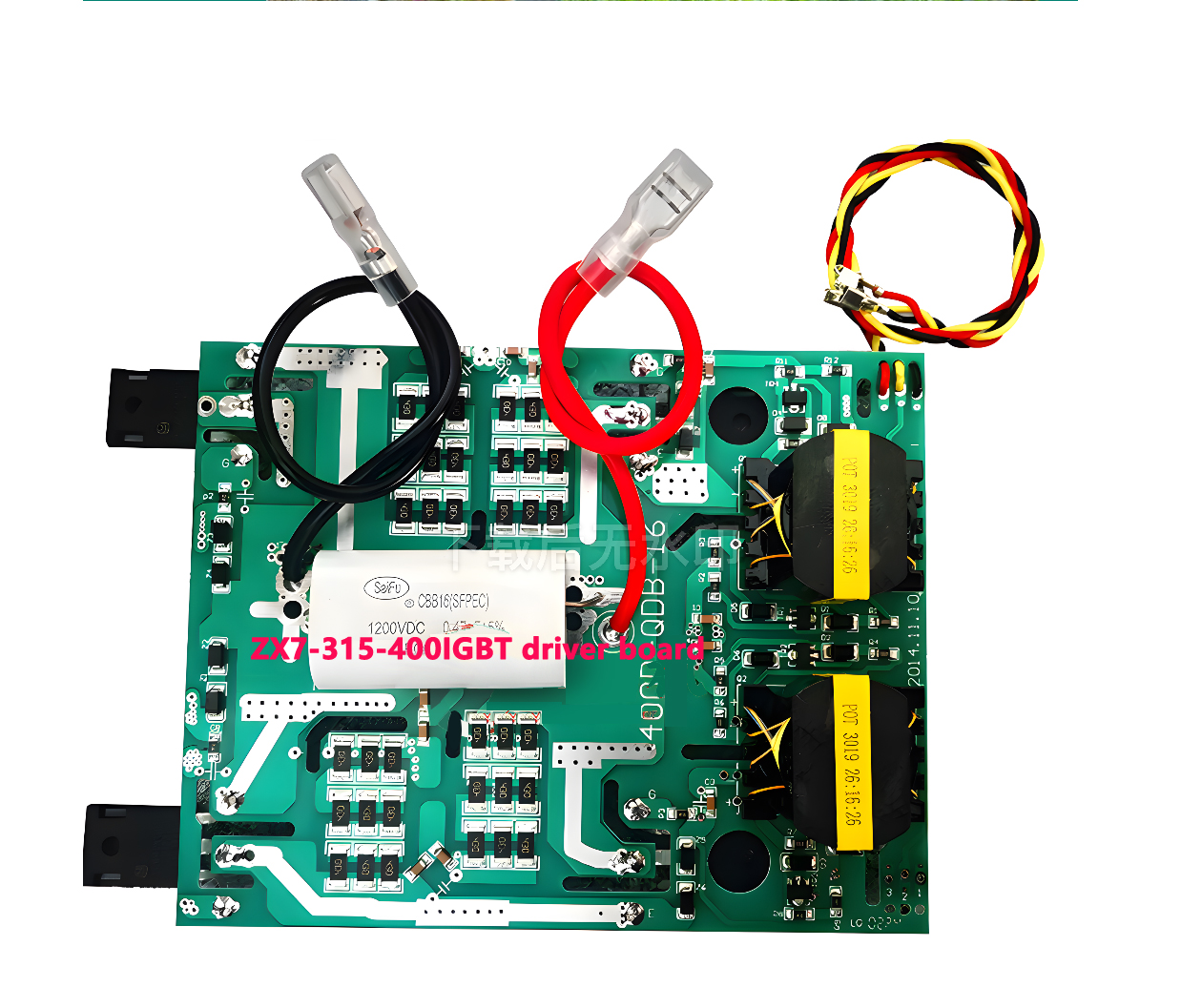

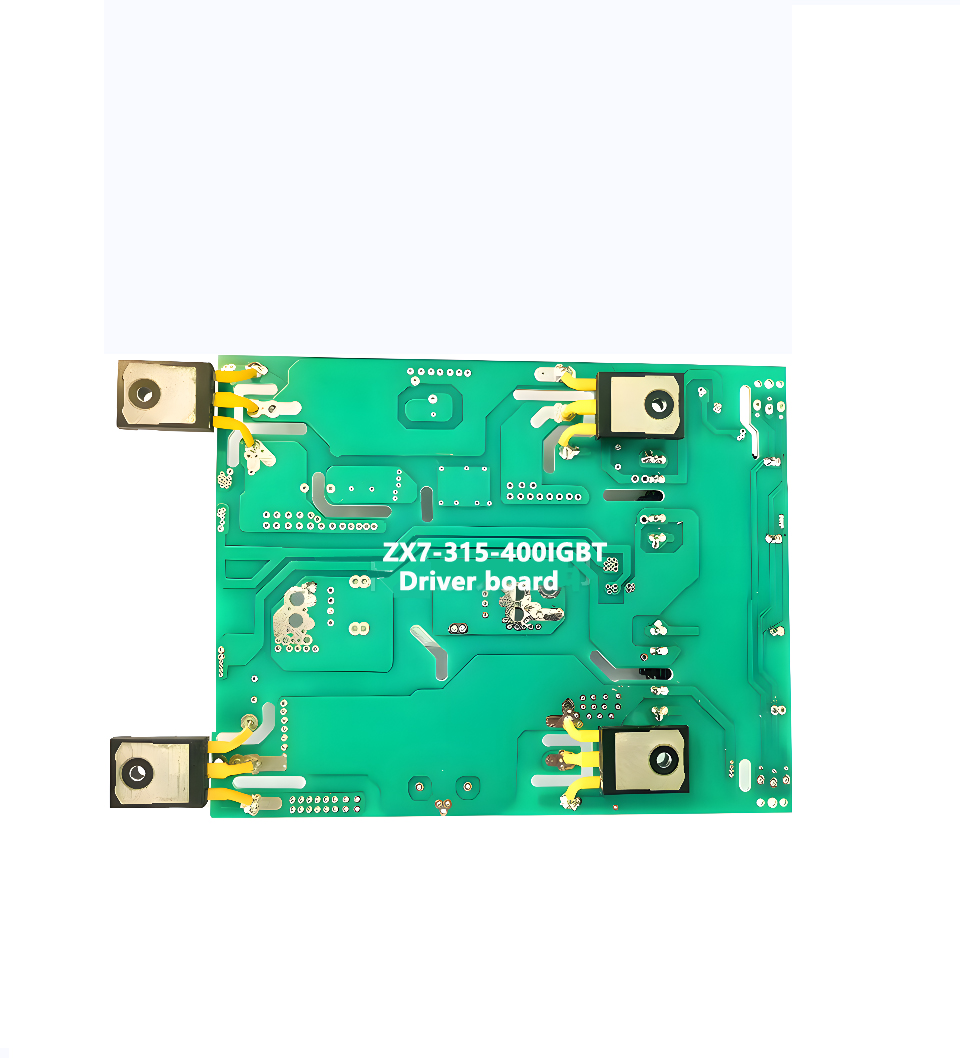

We support eight configurations depending on your requirements, ranging from options without capacitors/IGBT to custom sets with 25N120, 40T120, or high-power 40N120 combinations, complete with full sets of wiring harnesses.
Since PCBs are highly customized products, returns are not supported. For quality issues, please reach out to customer service to arrange a refund or replacement. Please note we do not cover losses beyond the product value or delays caused by force majeure.
Orders placed before 17:00 are registered as same-day orders, while orders placed after 17:00 are registered on the next day. The term "24-hour delivery" refers to one business day. Please note that Sundays and holidays are excluded from lead-time calculations.
Our engineering team accepts RS-274-X, RS-274-D, CAD, DXP, Protel 99 SE, PADS, and GC-CAM file formats for processing Gerber files.
We support multiple shipping solutions: Air freight (via UPS, DHL, TNT, CTS, and FEDEX), Railway transport, Seaborne shipping, or any customer-designated shipping arrangement.
Our operations are strictly certified under ISO9001:2015, ISO14001:2015, IATF16949:2016, UL, CQC, RoHS, Reach, and the "National Military Standard."
