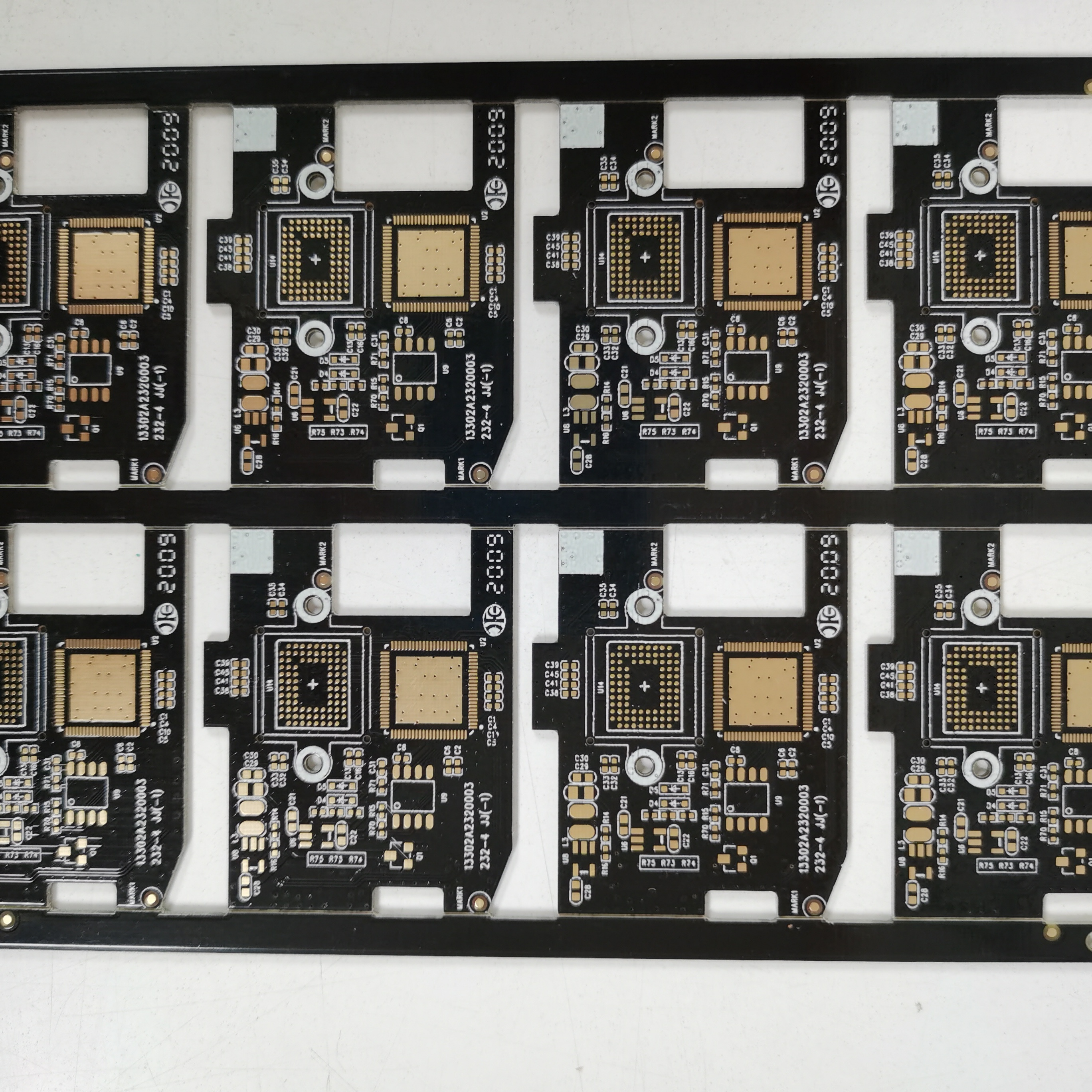

TOP PCB KB6160 FR4 Double sides PCB printed circuit board China Manufacture 4 layer pcb circuits for Multilayer design

Product Description

PCB Header Image

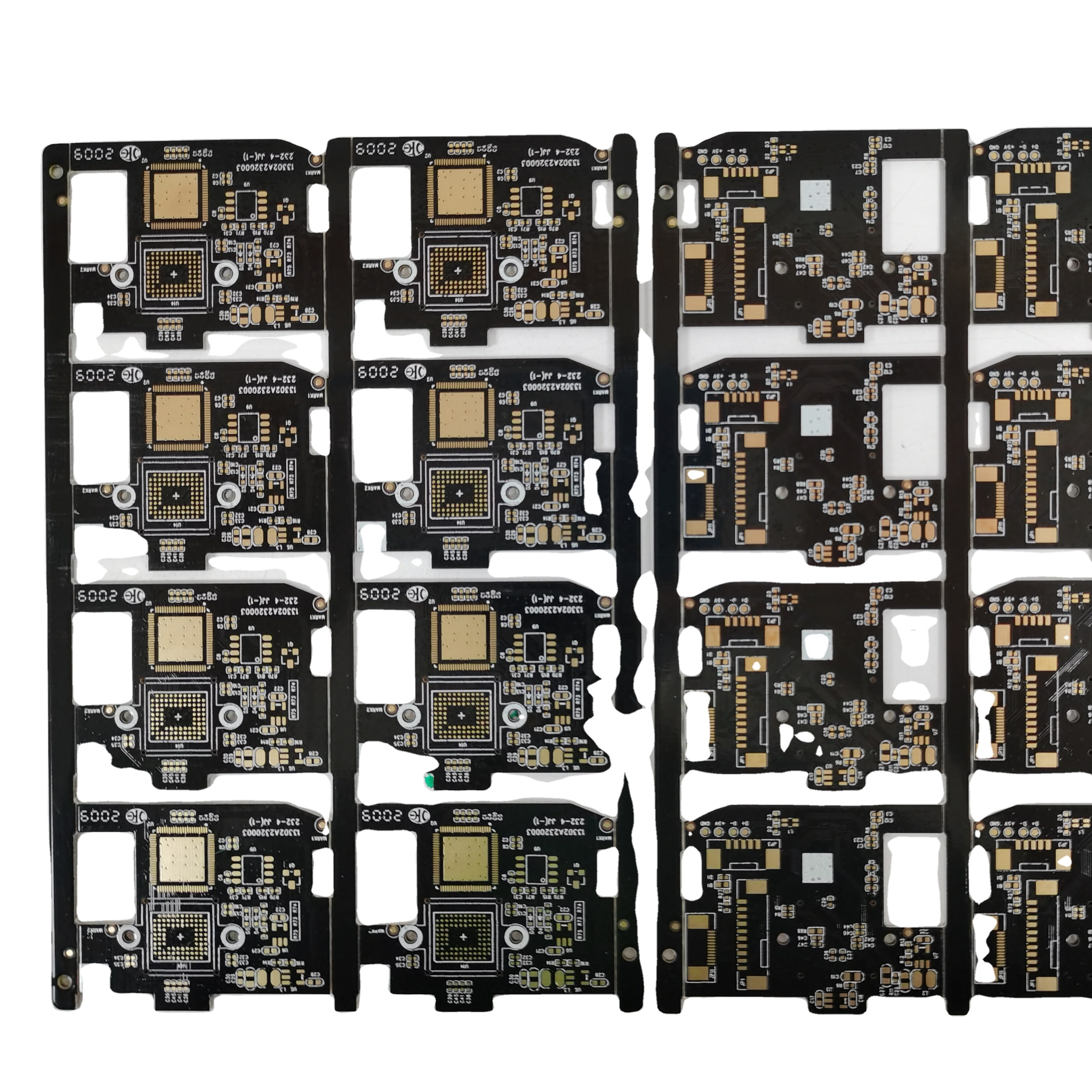

TOP PCB KB6160 FR4 Double sides PCB printed circuit board China Manufacture 4 layer pcb circuits for Multilayer PCB
Product Description

Our Advantages:

  • Program and functional test and package by Free.
  • High quality: IPC-A-610E standard, E-test, X-ray, AOI test, QC, 100% functional test.
  • Professional service: PCB/FPC/Aluminium Making, SMT, DIP, Component Sourcing, OEM with 12 years experience.
  • Certifications: UL, 94v-0, CE, SGS, FCC, RoHS, ISO9001:2008, ISO14001, ISO13485, TS16949.
  • The warranty period for PCBA: 2 years.
  • About Factory: 13 SMT Lines, 5 DIP Lines, 1 X-ray, 13 AOI, 2 Sample test machines.

PCB & PCBA Capacity:

Items Capacity
1. Material FR4, (High Tg FR4, General Tg FR4, Middle Tg FR4), Lead-Free Solder Sheet, Halogen Free FR4, Ceramic Filling Material, Teflon, PI Material, BT Material, PPO, PPE etc.
2. Board thickness Mass production: 394mil(10mm) Samples: 17.5mm
3. Surface finish HASL, Immersion Gold, Immersion Tin, OSP, ENIG + OSP, Immersion Silver, ENEPIG, Gold Finger
4. PCB Max panel size 1150mm × 560mm
5. Layer Mass production: 2~58 layers / Pilot run: 64 layers, Flexible PCB: 1-12 Layers
6. Min hole size Mechanical drill: 8mil(0.2mm) Laser drill: 3mil(0.075mm)
7. PCBA QC X-ray, AOI Test, Functional Test
Product Display

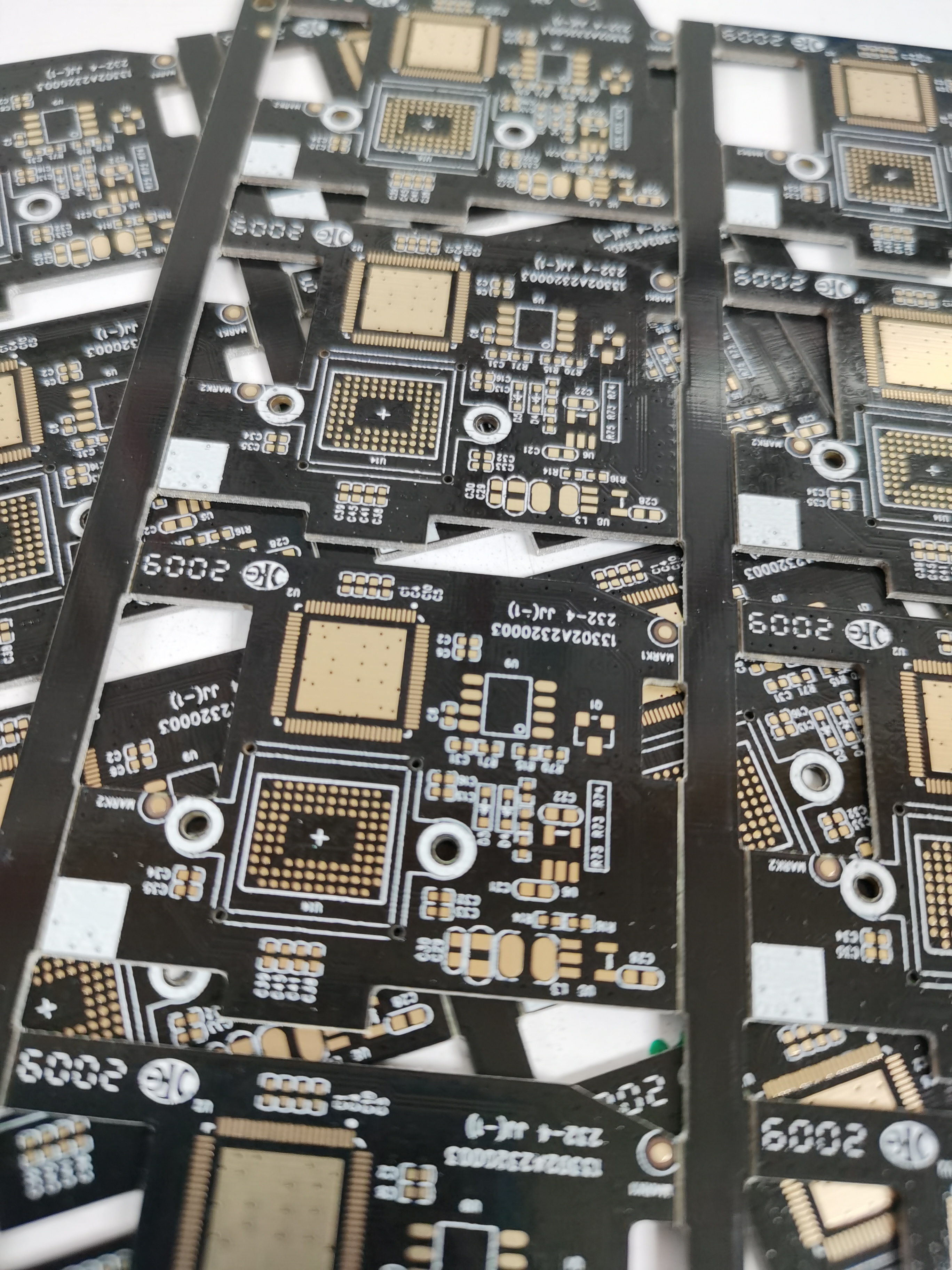

Product Display 1

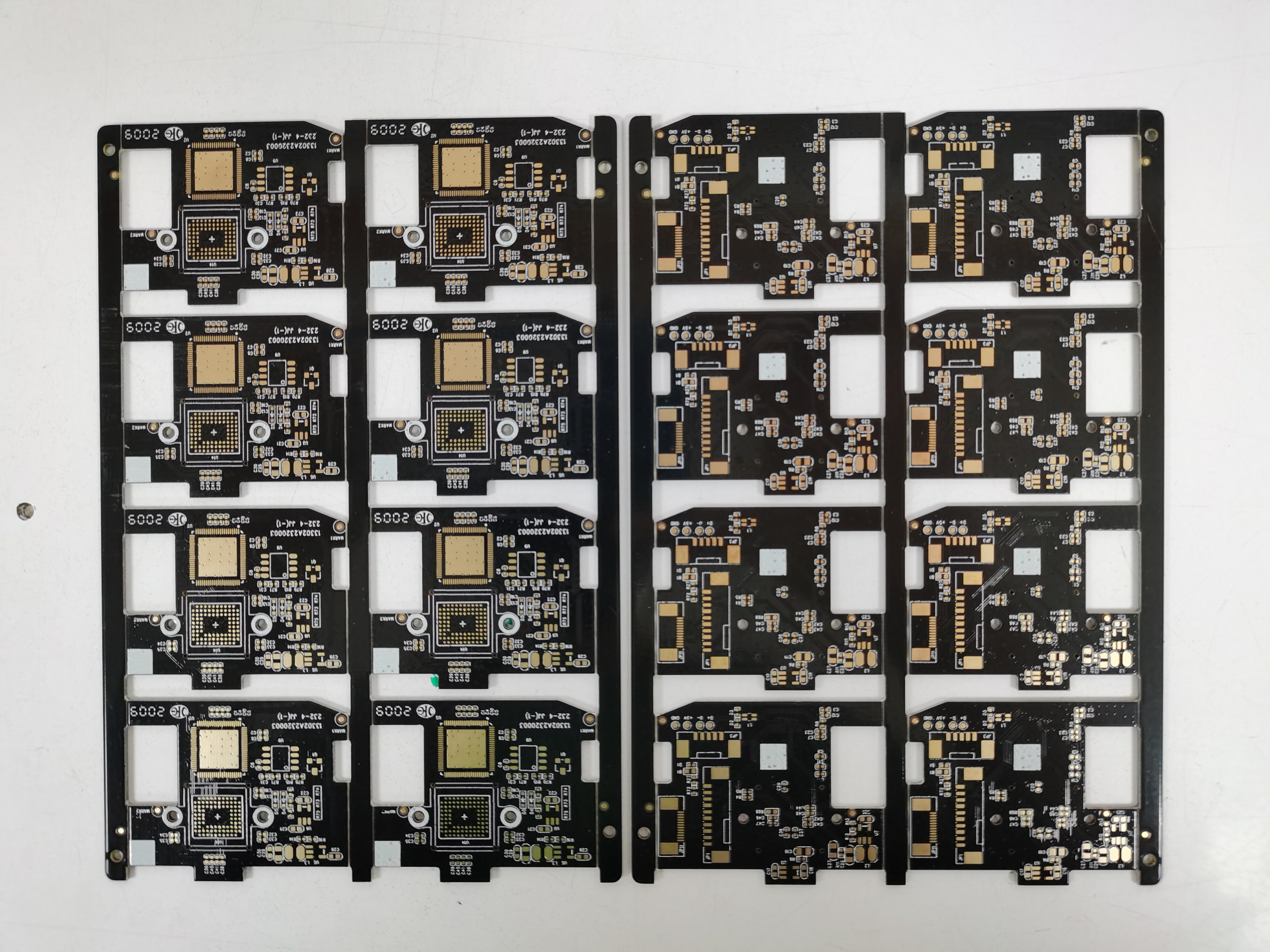

Product Detail Left

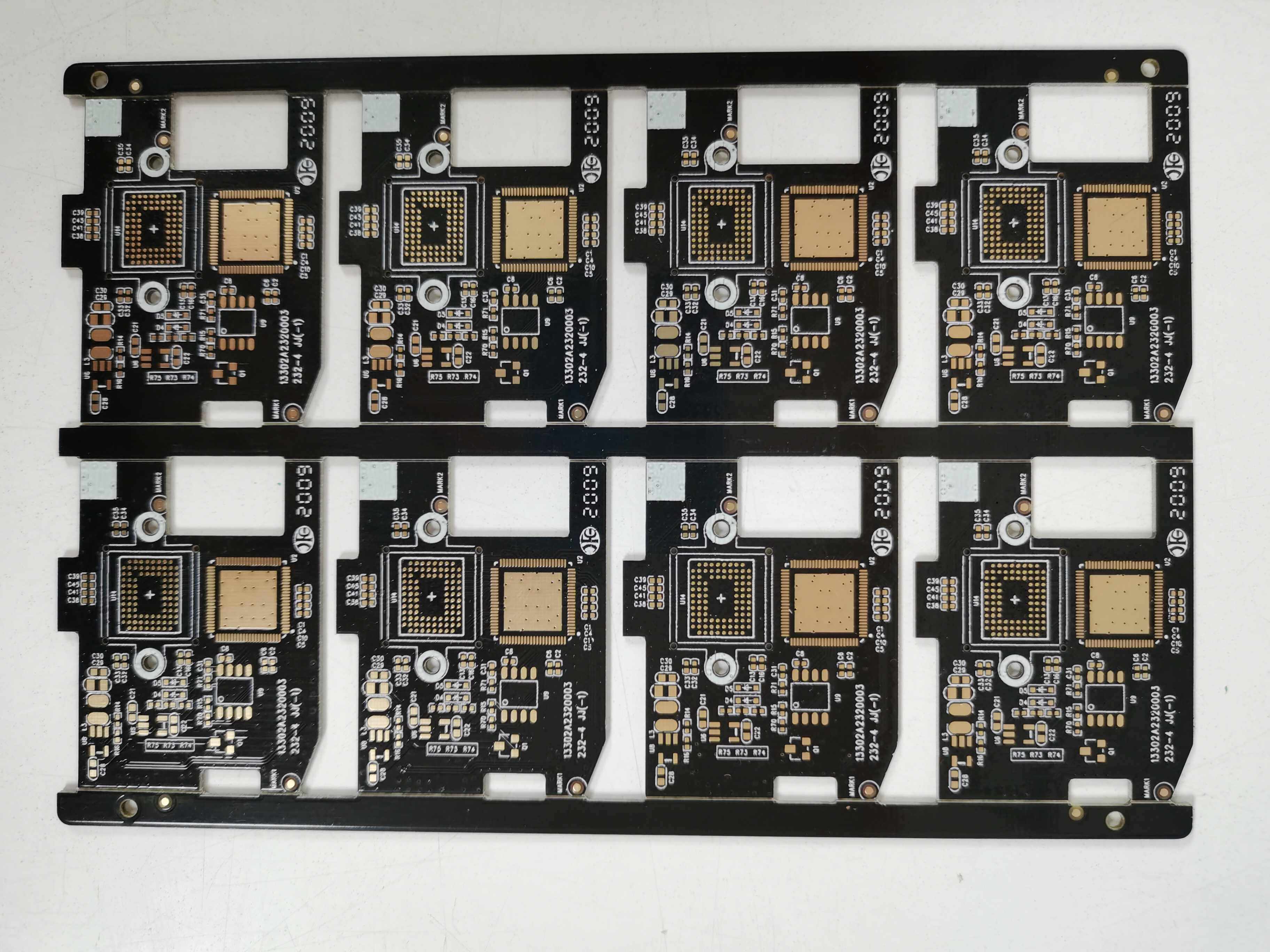

Product Detail Right
About Us
Factory Entrance
Production Facility 1
Production Facility 2
We provide the following services to our clients: Schematic Design & Board Layout PCB & FPC Manufacturing Metal Injection Molding Global Supply Chain Management PCB & PCB Assembly Service deliver the finished goods to you, or drop shipping. If you require only one aspect of the above, we have the flexibility to match your needs and requirements.
Provide one-stop PCBA service, such as 0201/BGA/CCGA surface-mount(smt), thru-hole(tht), mixed technology (smt&thru-hole), conformal coating, potting and encapsulations, AOI/X-Ray PCBA testing, IC programming, box building service, etc. The PCBA used in telecommunications, automotive electronics, 3G/4G/5G products, IOT products, AI smart control products, RF, networking, security, Industrial control, medical Instrumentation, military products, computer peripherals and other high-tech fields. We have a great reputation from our customers around the world.
Production Workflow
Certificates
Production Certifications
Customer Visitor & Feedback
Customer Visit
Client Feedback
Packing & Shipping
Packing and Shipping Details
FAQ
1. What files do you use in PCBA fabrication?

A: Gerber or Eagle, BOM listing, PNP and Components Position.

2. Is it possible you could offer sample?

A: Yes, we can custom samples for your testing before mass production.

3. How much time could I get the quotation after sent Gerber, BOM and test procedure?

A: Within 6 hours for PCB quotation and around 24 hours for PCBA quotation.

4. How can I know the process of my PCBA production?

A: 7-10 days for PCB production and components purchasing, and 10 days for PCB assembly and Testing.

5. Are my design secure when I send them to you?

A: Your files are held in complete safety and security while we are in possession of them. Your files are never shared with any third parties, only our colleagues have access to your design files. Since they are your property, we respect the copyright of your files. The customer controls the disposition of these files per your requirements and written approval.

6. For Small quantity orders, can you produce prototype PCB?

A: Yes, we can, we have no MOQ. We have the capability to produce circuit boards in any amount.
